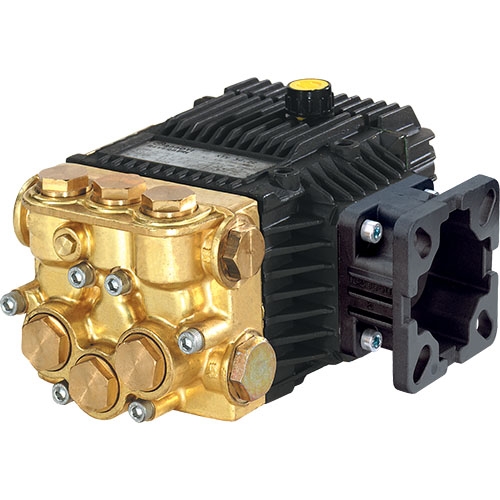

AR XTV2G15DBA-F7 Triplex Pressure Washer Pump

AR (ANNOVI REVERBERI) TRIPLEX PRESSURE WASHER PUMP

3/4" SHAFT WITH GAS ENGINE FLANGE

FOR 5/8" NEMA FLANGE VERSION CLICK HERE: XTV2G15EBA-F8

3400 RPM | 2.11 GPM | 1500 PSI

INLET 1/2" FPT | OUTLET 3/8” FPT | OIL CAPACITY 10 OZ

COVERED BY AR FIVE YEAR WARRANTY FOR DETAILS CLICK: AR WARRANTY

AVAILABILITY: IN STOCK

Manifold: High strength forged brass for long term use Bolts: Eight 6mm Plungers: New Ceramic plungers, thicker wall to help prevent thermal shock. Crankcase: Forged , precision ground. Valves: Stainless steel, valve seat o0ring is side mounted Seals: High quality high pressure seals. new low pressure sealwith built in scraper. Piston guides: Two piece piston guides

Plunger Pumps are designed for a wide variety of high pressure washing applications. They are constructed of die-cast bodies and feature a forged brass head. Internal components include special thick solid ceramic plungers for long life and durability. Precision cast cooling fins are anodized for maximum heat dissipation. Oversized tapered roller bearings and the precision supports assure proper shaft alignment and maximum life. Valve cages of special designed Ultra-Form provide positive seating and extended life. One-piece connecting rods are either a special alloy aluminum or bronze oversized for strength and load disbursement. These pumps are designed for gearbox , belt drive, or coupling drive systems, electric motor 182-184 frame driven systems, or gasoline engine driven systems.
