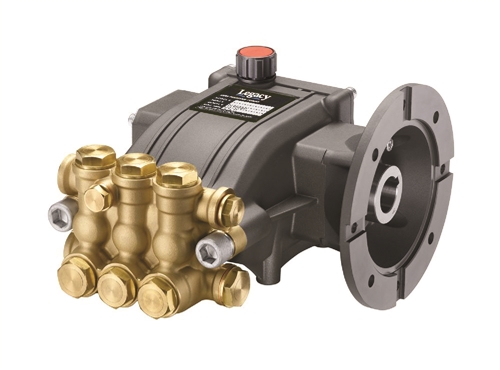

LEGACY BY KARCHER 5/8" SHAFT PUMP
NOTE: THIS IS THE SAME PUMP AS THE KARCHER KF2030F, SHARK SF2030F, LANDA LF2030F, AND HOTSY HF2030F
3000 PSI | 2.1 GPM | 3450 RPM
5/8" HOLLOW SHAFT | 1/2” FPT INLET | 3/8” FPT OUTLET
DIRECT COUPLE TO ELECTRIC MOTOR | NEMA 56C FRAME
PLEASE NOTE THAT FROM TIME TO TIME KARCHER MAKES UPGRADES TO
THEIR PUMPS AND THESE ARE IDENTIFIED BY ADDING A SUFFIX OF .1, .2 ETC. THE
UPGRADED PUMPS ARE COMPATIBLE WITH ALL PRIOR VERSIONS AND YOU WILL BE SHIPPED
THE MOST CURRENT VERSION.
COVERED BY KARCHER FIVE YEAR WARRANTY FOR DETAILS CLICK: KARCHER WARRANTY
REPLACES AND EQUAL TO MANY KARCHER, LANDA, SHARK AND HOTSY PUMPS - SEE “EXTENDED INFORMATION” FOR DETAILS ON BRAND NAMES AND MODEL NUMBERS
AVAILABILITY: ALLOW 3-5 DAYS FOR CUSTOM ASSEMBLY
8.923-818.0
Karcher - Legacy has introduced the next wave of heavy duty pump high-pressure pumps – the Legacy HD pump. This heavy-duty high-pressure pump is the outcome of 2 ˝ years of research and development, resulting in a number of upgrades over previous pump models. Premium, long-life components and new design features make the Legacy heavy duty pump a standout among other high-pressure pumps. Tests prove it will hold up better in rugged working conditions. A few of the many features:
Stronger crankcase housing with thicker aluminum cross members and mounting feet for added strength.
Super strong two-piece connecting rods designed with double feeder grooves, to
maximize lubrication for a dramatically cooler running pump.
High temperature long-life Seals correctly fitted for each pump.
Dacromet® finish on manifold bolts ads extra protection.
Oil level dipstick is vented, allowing for heat expansion. Oil level sight glass allows for quick and easy oil inspection.
Premium European quality tapered roller bearings on both the drive-side and opposite-
drive-side of the pump allow for heavier and demanding loads while greatly reducing
noise levels and heat build-up.
Precision machined hollow crankshafts for easy assembly and disassembly. Solid-shaft models have a full 55mm shaft length to easily accept pulley and sheaves.
Polished stainless steel plunger rod reduces friction heat for a smoother and cooler operation.
Precision ground and highly polished solid ceramic plungers designed and manufactured to withstand dramatic temperature and pressure spikes.
Revolutionary forged brass heads with exclusive “deepwell- sealing” valve caps eliminate any head pressure effects to the valve cap and valve cap thread
Karcher Legacy Crank Shaft Pump Warranty - Karcher crank shaft pumps non wear items are warranted to the original purchaser to be free of defects in material and workmanship under normal use for a period of 5 years.
This warranty excludes any defects caused by improper or negligent operation or installation, accident, abuse, misuse, neglect, including the failure of the customer to comply with any recommended maintenance.
For further details please call or email us.
THE KARCHER FAMILY OF PUMPS INCLUDES KARCHER (K), HOTSY (H), LANDA (L) SHARK (S) AND LEGACY (G). WITHIN THE HD SERIES OF PUMPS THE SAME PUMP WILL BE MARKED WITH DIFFERENT BRAND NAMES AND DIFFERENT LETTERS AT THE BEGINNING OF THE MODEL NUMBER - K, H, L, S OR G.
BASED ON AVAILABILITY YOU MAY RECEIVE A PUMP WITH ANY ONE OF THE BRAND NAMES KARCHER USES. YOU CAN BE ASSURED NO MATTER WHICH MARKINGS THE PUMP WE SEND YOU HAS YOU ARE RECEIVING A TOP OF THE LINE KARCHER PUMP COVERED BY THE RENOWNED KARCHER 5 YEAR WARRANTY.
|
